1. 加工程序清单

%
N0001G40G49G80
N0002G21
N0003G91G28Z0.
G28X0.Y0.
G90G92X450Y250Z260.
N0005M06T01
N0006G00X0.Y0.Z150.
N0007M3S800
N0008M08
N0009X10.Y10.
N0010Z100
N0011G01X20.F100
N0012G42Y20.D1
N0013Z50
N0014X115.
N0015X120.Y40.
N0016X115.
N0017G02X85.R15.
N0018X57.268Y49.378R20.
N0019X57.Y50.624R3.03
N0020G01Y65.
N0021G03X47.R5.
N0022G01Y50.
N0023G02X25.R11.
N0024G01X20.
N0025Y20.
N0026Z50
N0027G40
N0028X10.
N0029Y10.
N0030G00X10.Y10.
N0031Z150.
N0032M05
N0033M30
%

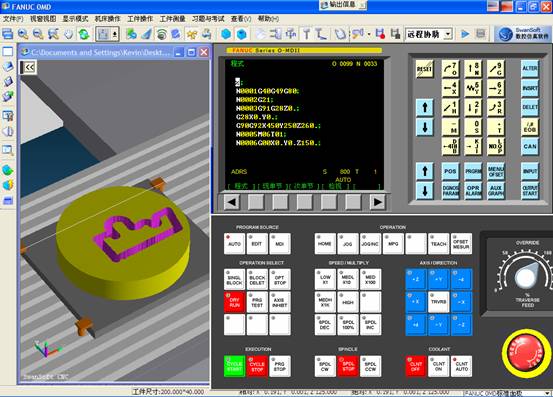

2. 三维加工视窗

3. 加工轨迹线
