SIEMENS 810/840DT
1.加工程序清单
G94 G90 M03 S1000 F100 T01D01
G00 X65 Z5
CYCLE95 ("AA1", 1.000, 0.000, 0.000,
0.100, 100.000, 50.000, 80.000, 1,
0.000, 0.000, 1.000)
S2000
AA1
G00 X100 Z100
M30
子程序 AA1.spf
G00 X47.349 Z2
G01 Z0
G03 X60 Z-35 CR=100
X28.793 Z-71.289 CR=50
G02 X13.73 Z-85.767 CR=25
X16.905 Z-117.157 CR=80
X32.134 Z-124.482 CR=10
G01 X46.832 Z-126.044
G03 X50 Z-128 CR=2
G01 Z-131
X61
RET

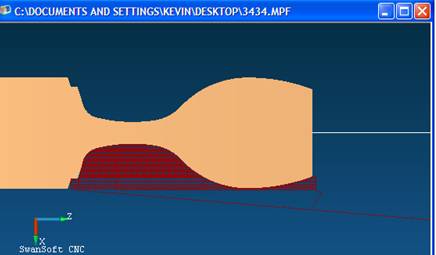

2.二维加工轨迹线
3．三维加工视窗
|
