1．加工程序清单

N1 T1.1 G90 G00 X80 Z80
N2 M03 S400
N3 G01 X46 Z3 F0.1
N4 G71I1.5K1N9X0.4Z0.1F0.1
N5 G00 X0
N6 G01 X10 Z-2
N7 Z-20
N8 G91 G02 X10 Z-5 R5
N9 G01 Z-10
N10 G03 X14 Z-7 R7
N11 G90 G01 Z-52
N12 G91 X10 Z-10
N13 Z-20
N14 G90 X50
N15G00 X80 Z80
N16 M05
N17 M30

2．二维加工轨迹线

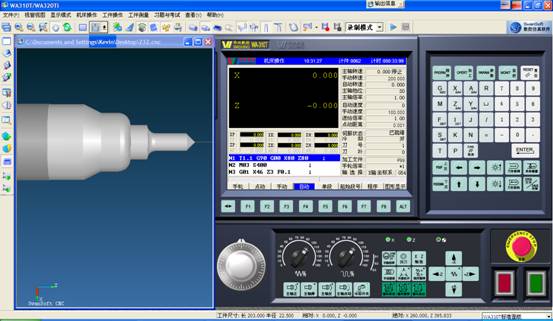

3．三维加工图形
